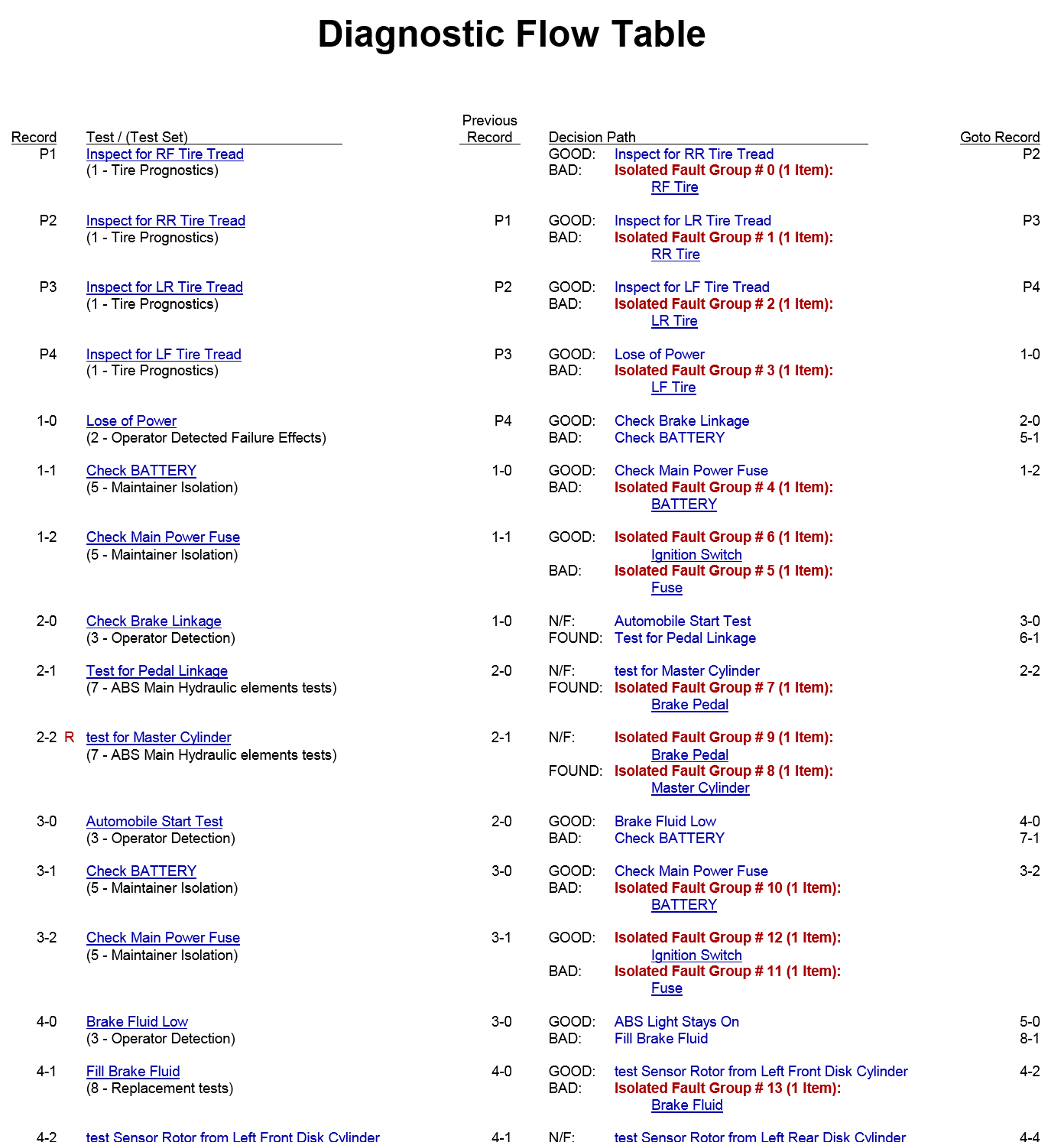

Diagnostic Flow Table Report

This report lists the diagnostic test sequence and isolated fault groups for a given diagnostic study. The Diagnostic Flow Table—which is essentially a textual representation of the Diagnostic Flow Diagram displayed in the eXpress interface—contains information useful for diagnostic development and/or troubleshooting. More specifically, this report can be useful in producing malfunction isolation procedures hosted in an IETM or other type of technical manual. This report can also be useful for model and diagnostic verification, since it provides the logical and strategic flow of the diagnostics generated within the given diagnostic study.

Full Diagnostic Flow Table (Click Here)
